GO-11T80MG (0.03s/60°, 18kg.cm)

€ 99,00

High torque/ultra high speed narrow band (760µs) digital standard brushless 79g servo with titanium/hardened steel gear and wide input voltage range 4.8-8.4V, 3xBB, to be used as tail servo for 500-800 RC helis with advanced gyro/flybarless control systems. Torque 12.0kg.cm, speed 0.045s/60° at 4.8V, torque 14.0kg.cm, speed 0.039s/60° at 6.0V, torque 15.5kg.cm, speed 0.034s/60° at 7.4V, torque 18.5kg.cm, speed 0.030s/60° at 8.4V.

Aluminium case for perfect cooling under high load.

Not programmable.

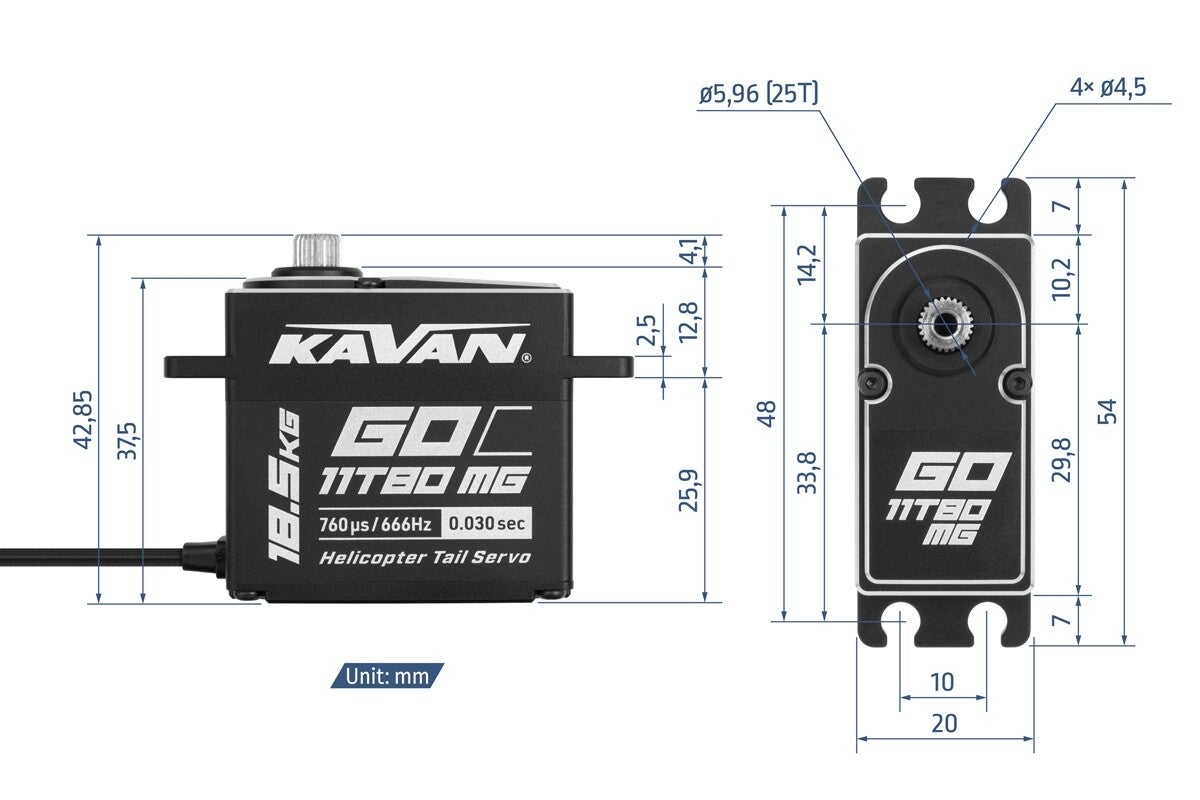

Servo dimensionsStandardServo
typeDigitalProgrammableNoThrust at 4.8V [kg/cm]12Thrust at 6.0V [kg/cm]14Thrust at 7.4V [kg/cm]15.5Thrust at 8.4V [kg/cm]18.5Speed at 4.8V [s/60st.]0.045Speed at 6.0V [s/60st.]0.039Speed at 7.4V [s/60st.]0.034Speed at 8.4V [s/60st.]0.03Servo gearsMetal,TitaniumBall bearings3×High-voltageYesPower supply [V]4.8 - 8.4Length [mm]40Width [mm]20Height [mm]37.5Weight [g]79

Intended forHelicopters
