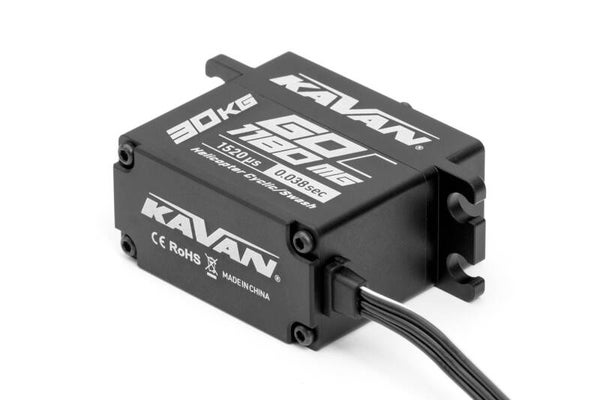

GO-1180MG (0.038s/60°, 30kg.cm)

€ 99,00

High torque/ultra high speed digital standard brushless 79g servo with titanium/hardened steel gear and wide input voltage range 4.8-8.4V, 3xBB,

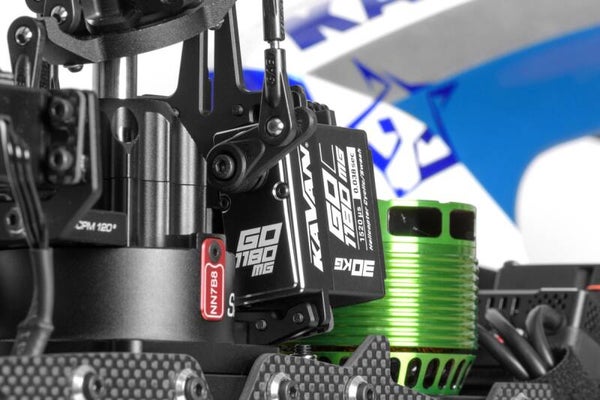

Ideal as swashplate servo for 500-800 RC helis etc.

Torque 22.0kg.cm, speed 0.060s/60° at 4.8V, torque 24.0kg.cm, speed 0.050s/60° at 6.0V, torque 28.0kg.cm, speed 0.042s/60° at 7.4V, torque 30.0kg.cm, speed 0.038s/60° at 8.4V.

Aluminium case for perfect cooling under high load.
Not programmable.

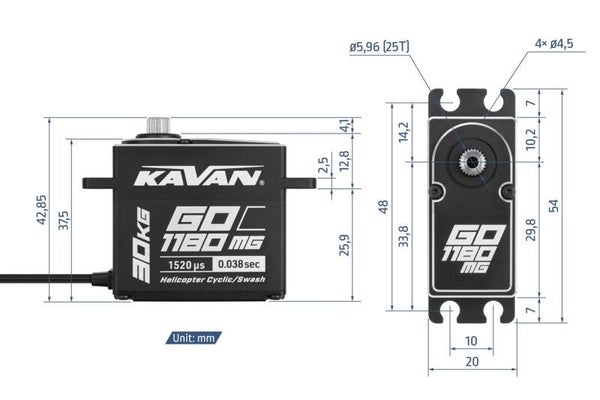

Servo dimensionsStandardServo
Thrust at 4.8V [kg/cm]22Thrust at 6.0V [kg/cm]24Thrust at 7.4V [kg/cm]28Thrust at 8.4V [kg/cm]30Speed at 4.8V [s/60st.]0.06Speed at 6.0V [s/60st.]0.05Speed at 7.4V [s/60st.]0.042Speed at 8.4V [s/60st.]0.038Servo gearsMetal,TitaniumBall bearings3×High-voltageYesPower supply [V]4.8 - 8.4Length [mm]40Width [mm]20Height [mm]37.5Weight [g]79

Intended forHelicopters
